The GTL coil series offers versatile performance across Eleaf's compact pod and tank systems. Constructed with Kanthal mesh wire and organic cotton wicking, these coils deliver clean flavour extraction whilst maintaining consistent vapour output. Each pack contains five individually wrapped coils, compatible with popular devices including the iJust D20, Pico Compaq, and iSolo R.

Available in three resistances (0.4Ω, 0.8Ω, 1.2Ω), the GTL range accommodates both mouth-to-lung and restricted lung vaping styles. The mesh construction increases e-liquid contact surface area, producing fuller flavour profiles compared to standard wire coils. Large wicking ports handle high VG e-liquids efficiently, reducing dry hit occurrences during extended sessions.

Key Advantages

Kanthal Mesh Technology

Enhanced heating surface delivers richer flavour clarity with improved wicking speed across various e-liquid ratios.

Wide Device Compatibility

Single coil platform works across multiple Eleaf kits including GTL Pod Tank, FlasQ Pod, iStick Power 2, and Glass Pen systems.

Three Resistance Options

Covers 0.4Ω to 1.2Ω range, accommodating freebase nicotine users and nic salt vapers with appropriate wattage flexibility.

Press-Fit Installation

Tool-free coil changes with straightforward push-fit design, eliminating threading complications during replacements.

Performance Benefits

The mesh wire structure addresses common issues with traditional coil heads. Larger wicking holes prevent cotton saturation delays, particularly beneficial when using thicker 70% VG blends. Users report consistent flavour quality throughout the coil lifespan, typically lasting 1-2 weeks with moderate use.

The 0.8Ω option sits comfortably in the MTL sweet spot, providing satisfying throat hit without excessive vapour production. Ideal for former smokers seeking familiar draw resistance. The 0.4Ω variant suits direct lung vapers who prefer warmer vapour and denser clouds from sub-ohm output.

Compatible Devices & Wattage Recommendations

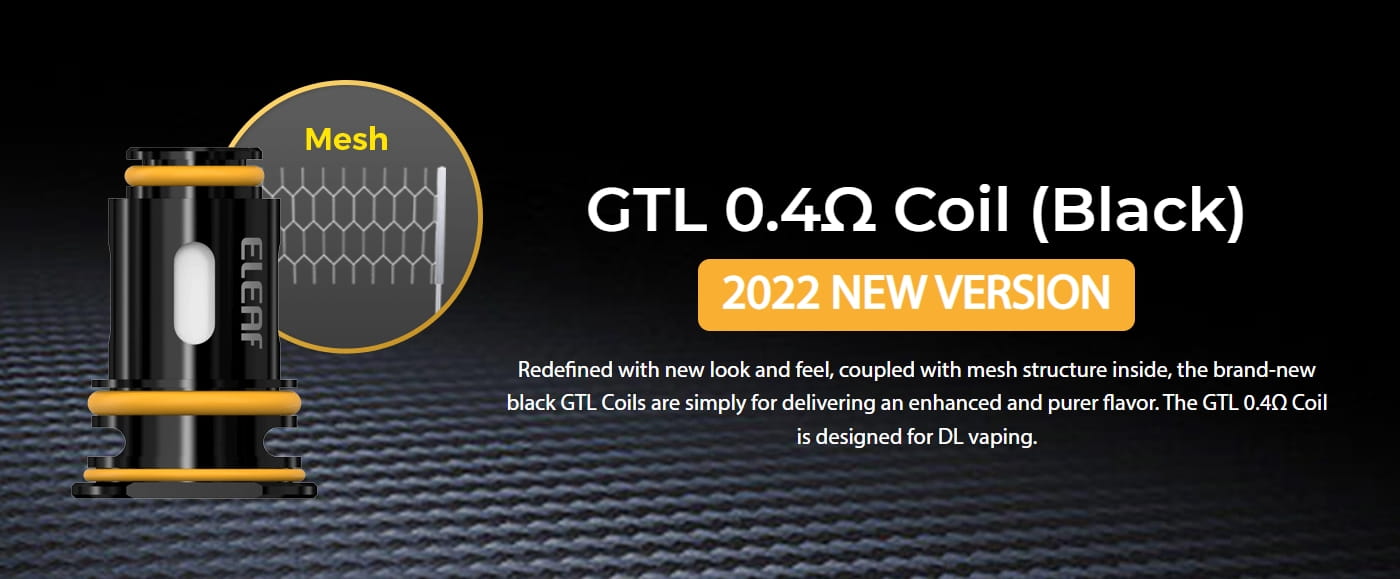

0.4Ω Coil: 20-30W (DTL vaping)

Compatible with: Eleaf Pico Compaq, iJust D20, iJust AIO, GTL Pod Tank, iSolo R, iSolo Air

0.8Ω Coil: 12-18W (restricted MTL)

Compatible with: GTL Mini Pod, FlasQ Pod, Glass Pen, iStick Power 2/2C, GTL Pod Tank

1.2Ω Coil: 7-13W (tight MTL)

Compatible with: All GTL-compatible devices, particularly suited for Glass Pen and compact pod systems

0.4Ω Coil: 20-30W (DTL vaping)

0.8Ω Coil: 12-18W (restricted MTL)

1.2Ω Coil: 7-13W (tight MTL)

E-Liquid Pairing Guide

The 1.2Ω coils perform optimally with 50/50 VG/PG blends or high PG formulations, handling nicotine salt concentrations between 10-20mg comfortably. This resistance suits vapers prioritising nicotine delivery over vapour volume.

For the 0.8Ω option, 50/50 ratios work reliably, though it manages 60/40 VG blends without wicking struggles. Recommended freebase nicotine strength sits between 6-12mg for balanced throat hit.

The 0.4Ω handles 70% VG e-liquids effectively at higher wattages, ideal for shortfill users running 3-6mg nicotine. Avoid max VG formulations as wicking ports, whilst generous, may struggle with extremely thick viscosity.

Technical Specifications

Resistance Options: 0.4Ω / 0.8Ω / 1.2Ω

Coil Material: Kanthal mesh wire

Wicking: Organic cotton with enlarged ports

Installation: Press-fit design (no threading)

Pack Size: 5 coils per pack

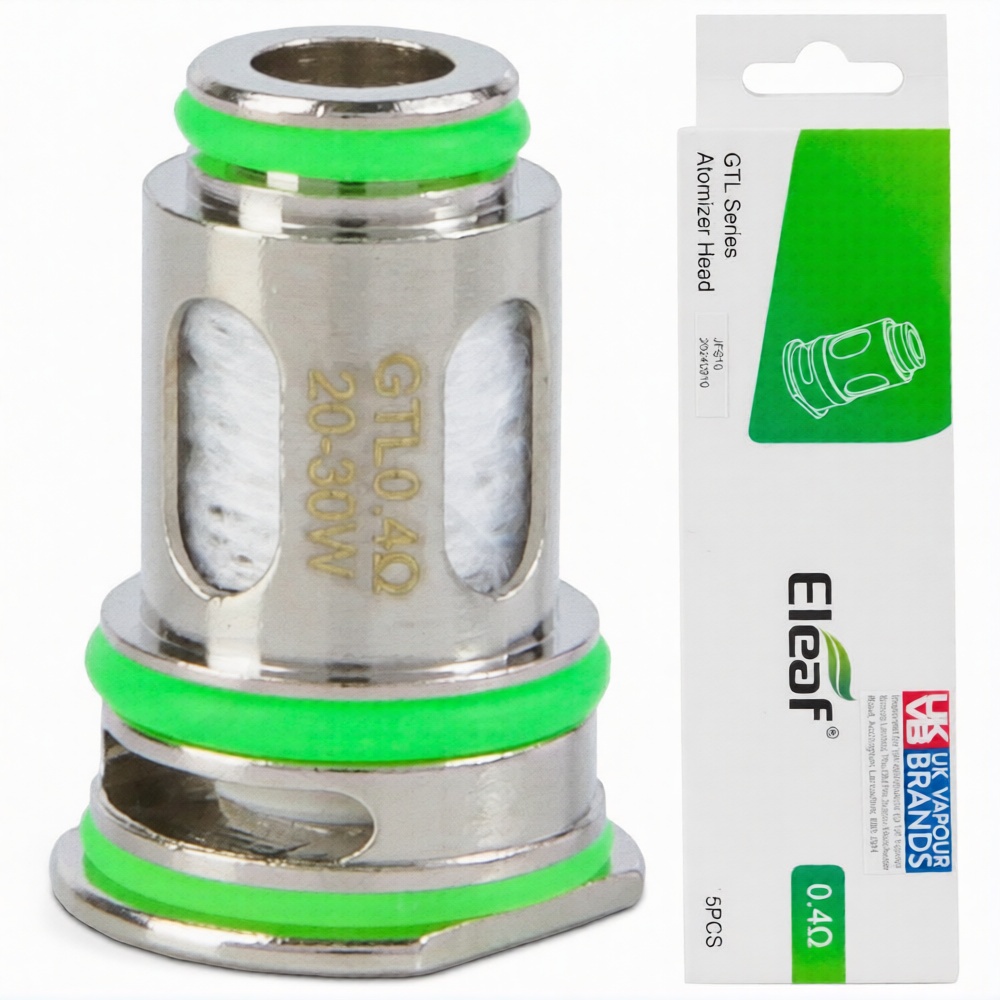

0.4Ω Specification

Power Range: 20-30W

Dimensions: 12mm × 17mm

Weight: 3.5g

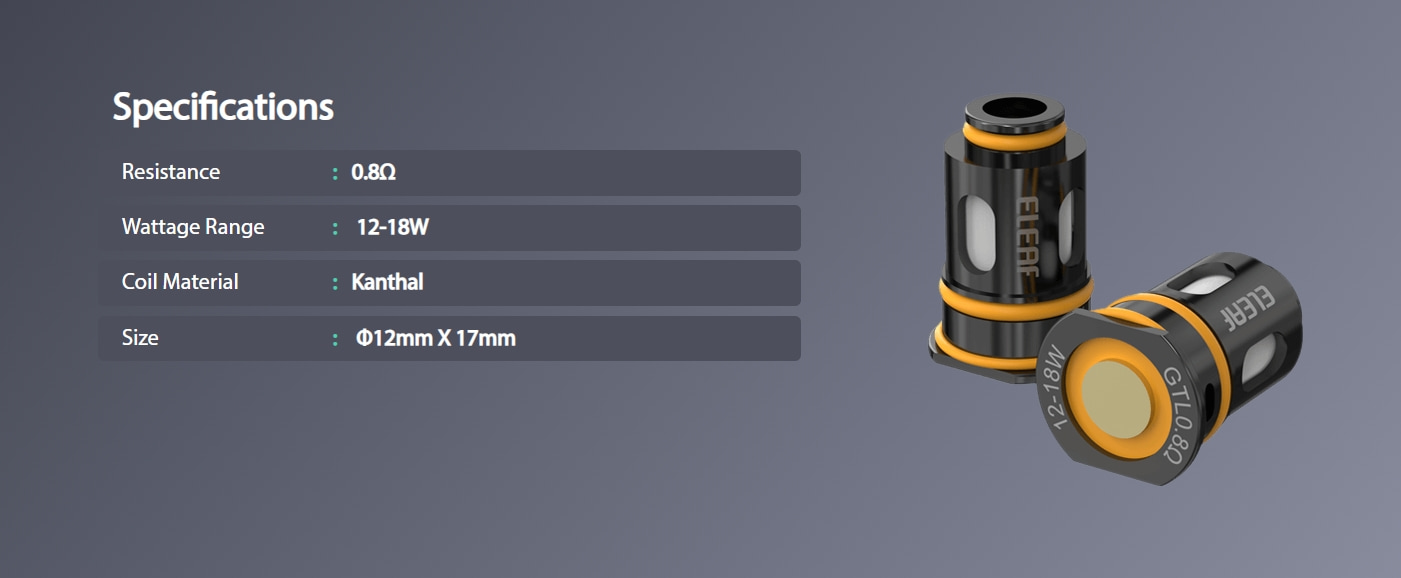

0.8Ω Specification

Power Range: 12-18W

Dimensions: 12mm × 17.2mm

Weight: 5g

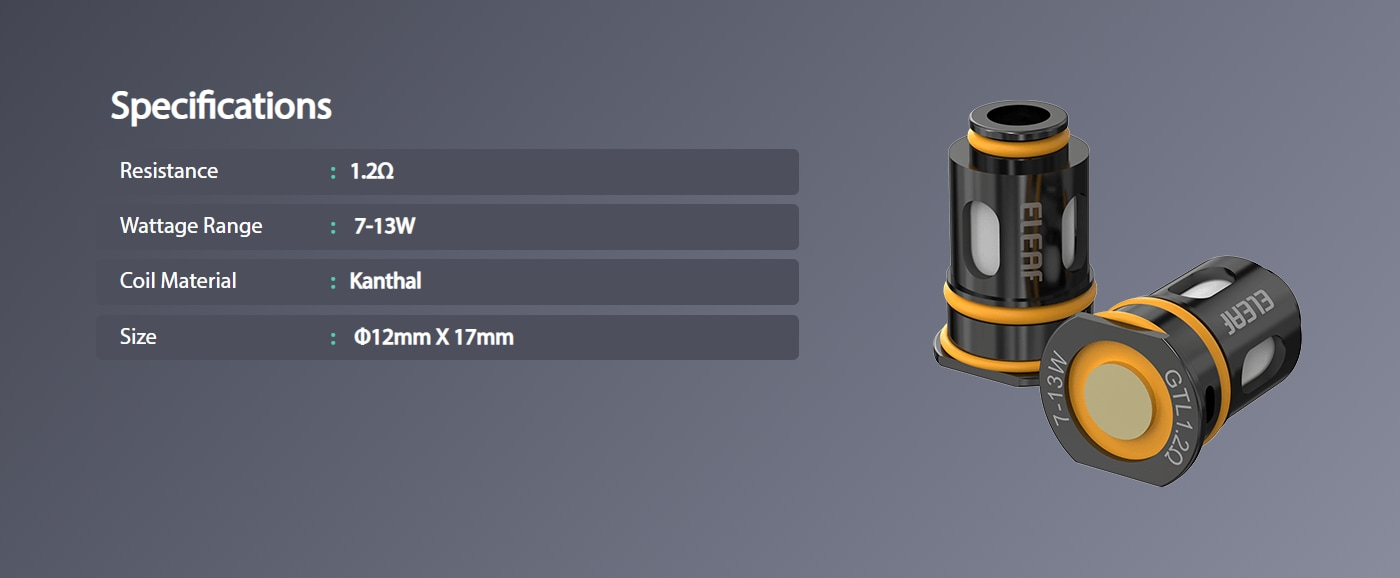

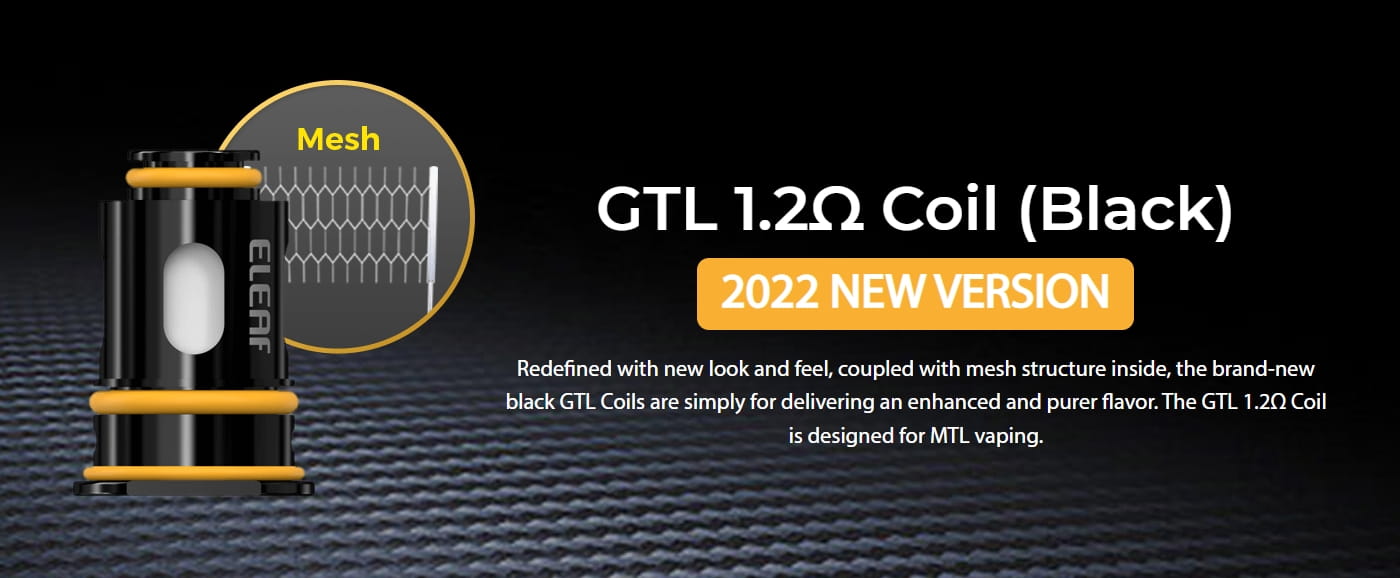

1.2Ω Specification

Power Range: 7-13W

Dimensions: 12mm × 17mm

Weight: 4.2g
